Adjusting TRUArt 60W Pyrography Pen Collets to Fit a Pyrography Tip Made of Thicker Wire

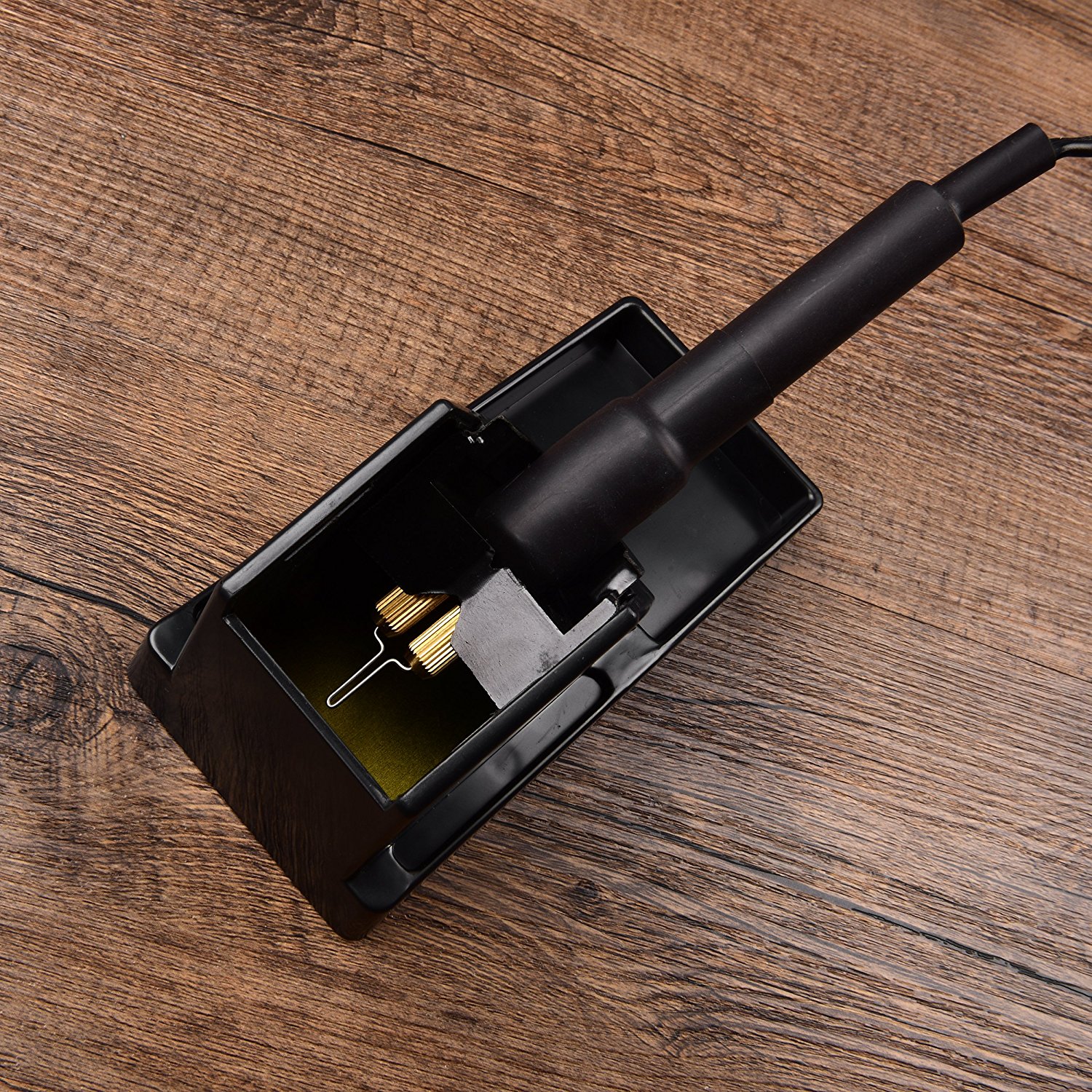

60W pyrography tip and pen in holder

.With all the various pyrography wire tips out in the market today, two pyrography tip sizes are the most commercially popular. The 18 Gauge and the 20 Gauge (18 GA and 20 GA) tips. They correspond to 1.0 mm and 0.8mm respectively. The thicker 18GA wire lasts longer and is suitable for very long hours of work. The thinner 20 GA wire is perfect for slightly lower heat and intricate detail work.

As it often happens, customers buy a set of tips unaware various wire sizes. With our TRUArt Stage 2 Dual Pen Professional Woodburning Detailer and other wire-tipped variants, all our tips are interchangeable regardless of the size. The ball point pyrography tip and some of our shading tips are universally 18 GA. As such, you will need to initially adjust your pyrography pen’s collet (see image 1 below) to accommodate the slightly larger tip. You would only need to do this only once after which it becomes much easier to switch between regular sized wire tips to the thicker types and vice versa.

Below is a detailed guide on how to use our 18 GA tips on our pyrography pens:

Unscrew the locking nuts (arrows) from the collets

pyrography tip



Push the 20 GA pyrography tip into the collets (red circle). Make sure that they go in straight into the collets as much as possible. Some force is required to do this. Do not wriggle the tip around once it’s inserted as that might loosen the collet too much. The fit should be as tight as possible to guarantee reliable conductivity.

pyrography tip



Pull out the pyrography tip, screw in the locking nut onto the collets leaving it loose (small arrows). Insert the tip back again (big arrow).

pyrography tip



Tighten the locking nuts. Your pen is now ready for some serious wood burning.

pyrography tip



If you have any questions about your pyrography tip, have any comments or suggestions, simply contact us at hello@truart.co or leave a comment below We’ll be right there to help you out.
